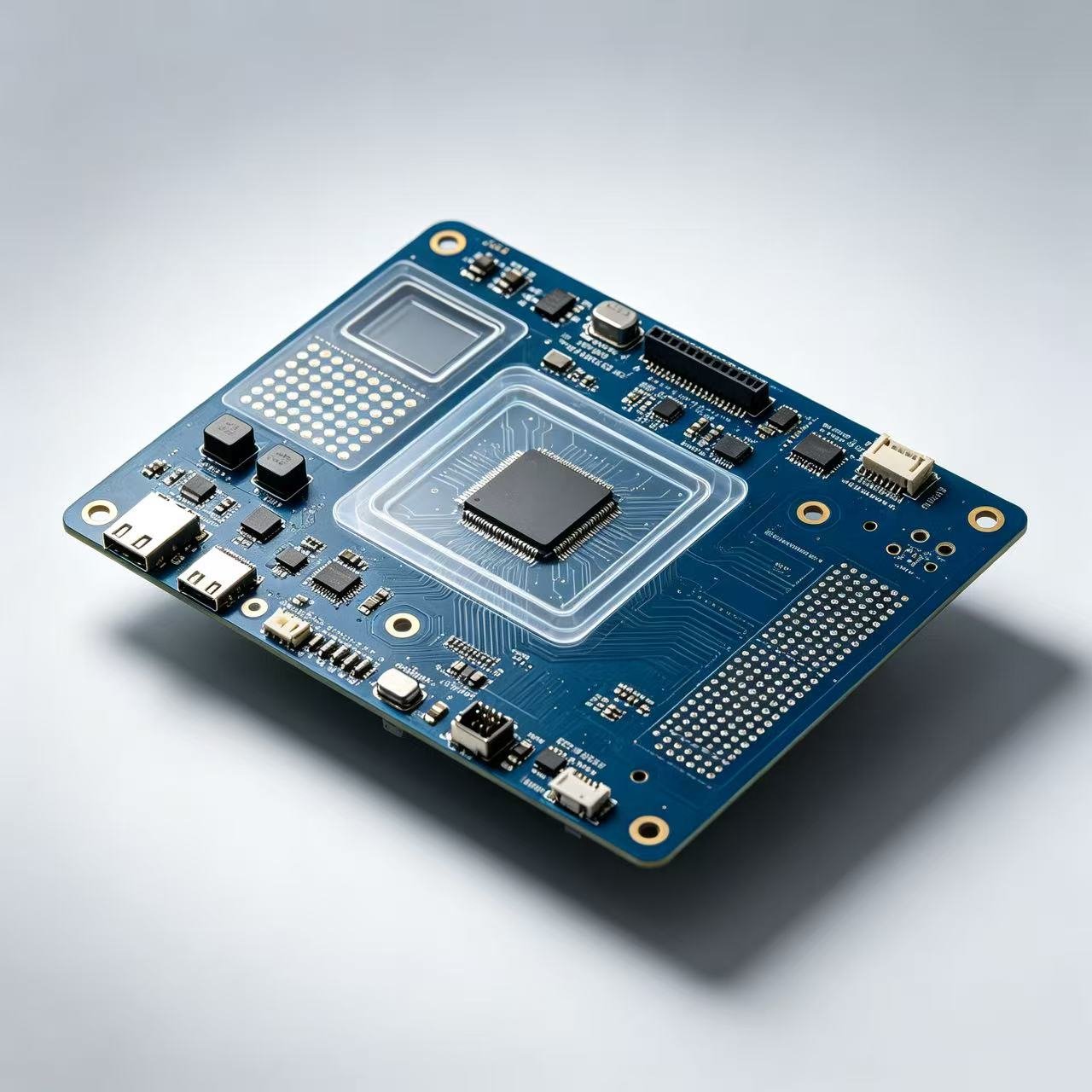

For LiDAR/Millimeter Wave Radar

· RF-optimized & ultra-low-loss hybrid materials · Controlled impedance / low insertion-loss routing · Laser micro-via HDI & cavity options · For automotive ADAS front-facing radar / blind-spot / 4D imaging radar / solid-state LiDAR transmitter & receiver boards

Product Information

• Supplier Qualification: ISO 9001:2015 & IATF 16949 audited · High-frequency laminate processing, hybrid press, cavity milling & HDI lines · 100% impedance, insertion-loss & AOI/electrical test per panel/lot
• Technical Specification: Frequency support 24 GHz / 77 GHz / 120 GHz · Trace width tolerance ±10 µm · Insertion loss ≤–1.5 dB/inch @ 77 GHz · Impedance control ±3% · Operating –40 to +125 °C · Rogers/PTFE + FR-4 or low-loss digital stack options
• Available Documents: CE / RoHS DoC / REACH SVHC Statement / Halogen-Free Certificate (IEC 61249-2-21) / IPC-6018 HF compliance report / Insertion-Loss Test Report / Phase/Jitter Report / Material Cert EN 10204 3.1 (+PPAP/AEC-Q100 alignment, UL/KC/EAC per destination)
