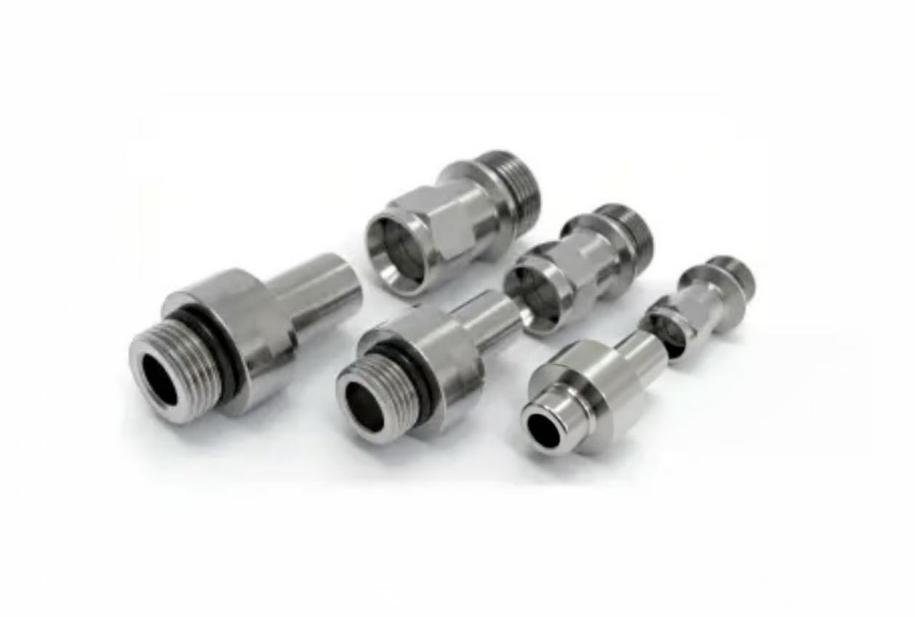

UQDB Blind-Mate Coupling

· OCP-standard floating quick disconnect · Zero-leak flat-face seal · For humanoid joint liquid-cooling loops / AGV thermal system maintenance / cobot modular servicing

Product Information

• Supplier Qualification: ISO 9001:2015 audited · OCP UQDB V2.0 compliant · 5000-cycle mechanical endurance validated
• Technical Specification: Radial misalignment tolerance ±1 mm · Working pressure 10 bar · Bore sizes 3.2/6.4/9.5/12.7 mm · Plug cycle life ≥5000 · Operating −55 to +125 ℃
• Available Documents: CE / RoHS / EPDM Seal Material Cert (UL/IEC 62368-1 G.15.2.3) / Mechanical Endurance Test Report / Material Cert (EN 10204 3.1) (+UL / EAC / KC per destination)
