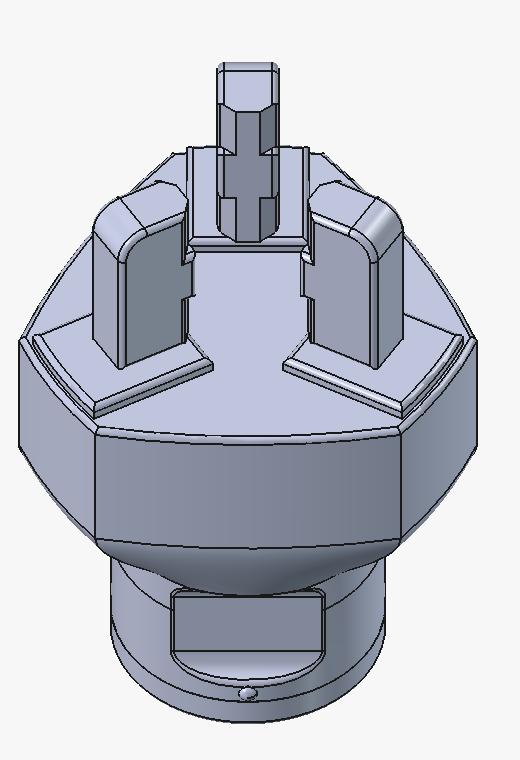

Centric Electric Gripper

· 3-jaw radial kinematics · Synchronous centering closure · Built-in servo drive & absolute encoder · For cylindrical-part handling / CNC chuck loading / bearing & gear assembly / precision centering tasks

Product Information

• Supplier Qualification: ISO 9001:2015 audited · In-house jaw-slide grinding & full closed-loop centering test · 100% repeatability & hi-pot test per/unit
• Technical Specification: Repeatability ±0.02 mm · Centering accuracy ≤0.05 mm · Closing speed ≤120 mm/s · Grip force 50–400 N · Jaw stroke 0–60 mm (per jaw) · Operating 0–40 ℃
• Available Documents: CE / RoHS / FCC Part 15B SDoC test report / IEC 60204-1 & IEC 61000-4 test reports / IEC 60034-1 / Centering-Accuracy Report / Force-Calibration Report / EN 10204 3.1 (+UL / EAC / KC per destination)
